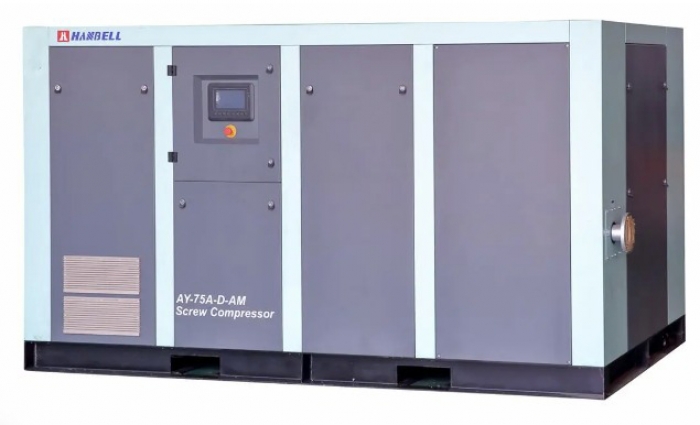

Hanbell AY Series Double Stage Oil-free Dry Screw Air Compressor (55kW to 425kW)
Apex Air Engineering (M) Sdn BhdType: Sale
PRODUCT NAME: Hanbell AY Series
PRODUCT MODEL: Double Stage Oil-free Dry Screw Air Compressor (55kW to 425kW)
PRODUCT MODEL: Double Stage Oil-free Dry Screw Air Compressor (55kW to 425kW)
Description

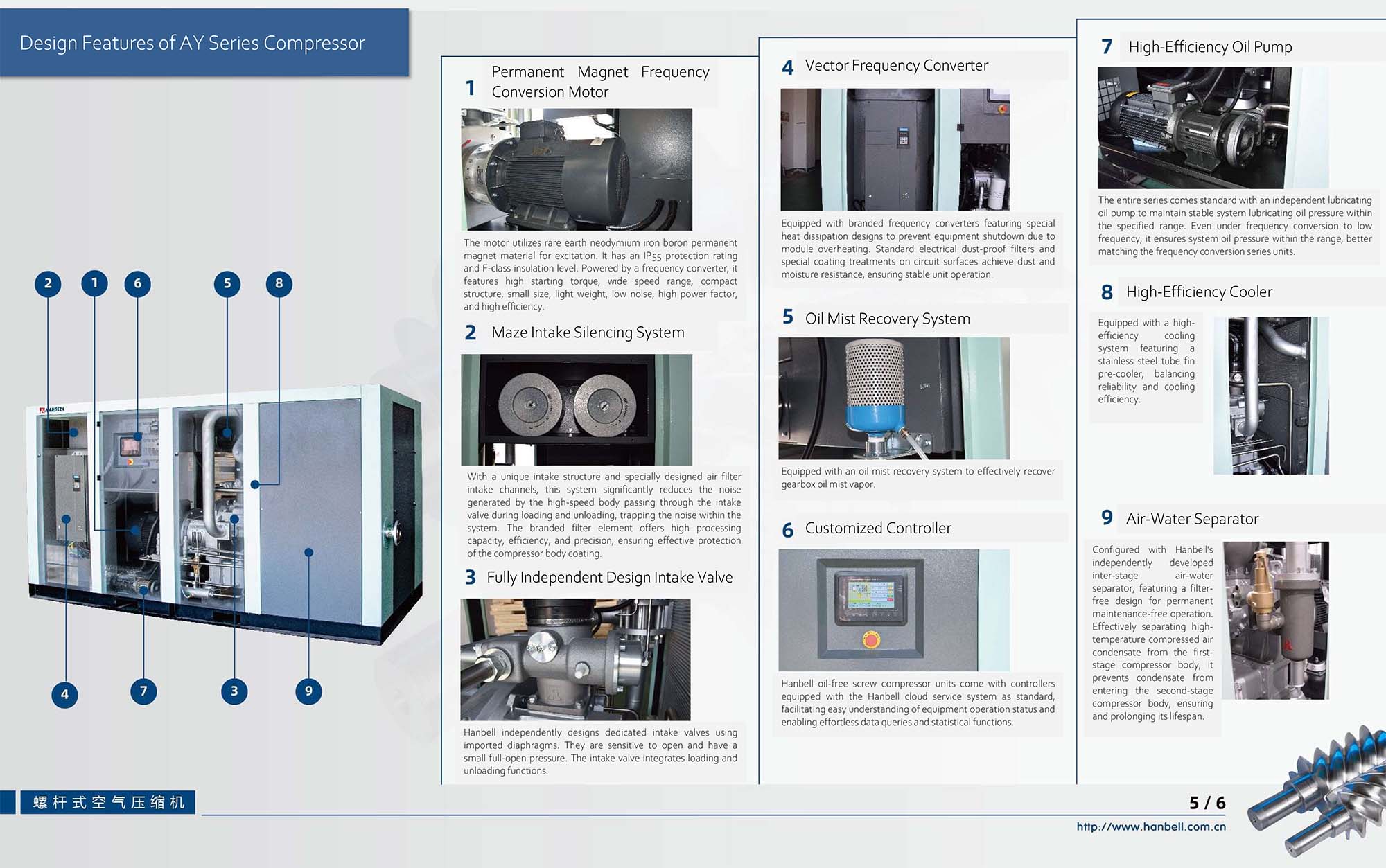

Hanbell AY Series: Oil-free Class 0 Compressed Air of Outstanding Quality
- Independent Research and Production: Hanbell designs and manufactures its own oil-free screw compressor bodies, utilizing core technology for exceptional performance and reliability.
- Special Coating for Efficiency and Durability: The rotor surfaces and inner walls of the main casing are coated with a thin, hard material that is resistant to corrosion, heat, and wear, which boosts efficiency and extends the compressor's lifespan.
- Resilient Rotors: Coated with a special composite material, the rotors are built to withstand high temperatures and pressures, ensuring long-term durability and performance.
- High-Efficiency Motor: Equipped with an IE5 high-efficiency permanent magnet motor that offers excellent energy savings. The motor's Class B temperature rise provides optimal thermal management, while Class F insulation ensures superior protection against heat and electrical stress.
- Robust Protection: The motor's shell is rated at IP55 or higher, providing robust protection in harsh working environments.
- Power Range: Available in models from 55kW to 425kW, suitable for various industrial applications.
- Cooling Options: Offers both air-cooled and water-cooled versions to meet different operational needs.
- Pressure Range: Operates efficiently within a pressure range of 8 to 10 bar.
- Volume Flow Capacity: Handles a wide range of volume flow capacities, from 7.3 to 63.8 m³/min, making it versatile for different scale requirements.
- Warranty: Comes with a standard two (2) year warranty, ensuring peace of mind for users.
- Exclusive Availability: Available exclusively at Apex Air Engineering (M) Sdn Bhd. For inquiries or further information, please feel free to reach out.
- Independent Research and Production: Hanbell designs and manufactures its own oil-free screw compressor bodies, utilizing core technology for exceptional performance and reliability.
- Special Coating for Efficiency and Durability: The rotor surfaces and inner walls of the main casing are coated with a thin, hard material that is resistant to corrosion, heat, and wear, which boosts efficiency and extends the compressor's lifespan.
- Resilient Rotors: Coated with a special composite material, the rotors are built to withstand high temperatures and pressures, ensuring long-term durability and performance.
- High-Efficiency Motor: Equipped with an IE5 high-efficiency permanent magnet motor that offers excellent energy savings. The motor's Class B temperature rise provides optimal thermal management, while Class F insulation ensures superior protection against heat and electrical stress.
- Robust Protection: The motor's shell is rated at IP55 or higher, providing robust protection in harsh working environments.
- Power Range: Available in models from 55kW to 425kW, suitable for various industrial applications.
- Cooling Options: Offers both air-cooled and water-cooled versions to meet different operational needs.
- Pressure Range: Operates efficiently within a pressure range of 8 to 10 bar.
- Volume Flow Capacity: Handles a wide range of volume flow capacities, from 7.3 to 63.8 m³/min, making it versatile for different scale requirements.
- Warranty: Comes with a standard two (2) year warranty, ensuring peace of mind for users.
- Exclusive Availability: Available exclusively at Apex Air Engineering (M) Sdn Bhd. For inquiries or further information, please feel free to reach out.
